Place of Origin: | Guangzhou |
Brand Name: | ShangXu |
Certification: | CE certificate |
Model Number: | SX-QTK17 Series QMS |
Minimum Order Quantity: | 1 set |
---|---|
Packaging Details: | Standard Export Packing Cartons with Foam and other protection material |
Delivery Time: | 7 work days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 500 set per month |
Name: | Queue Management System | Language: | English/Arabic/French/Russian.etc Multiple Language Supported |
---|---|---|---|
Function: | Queue Management,Smart Queuing Tickets Printer | Material: | Cold Rolled Steel |
Warranty: | 1 Free Year | Printer: | Epson 80mm Thermal Printer |
Touch Screen: | IR Touch Panel | Os: | Windows 7 / Windows 10 |
Power Supply: | 110-240V 50HZ/60HZ | Type: | Wired / Wireless |
Highlight: | Touch Virtual Queue Management System,IR Virtual Queue Management System,Multi Window Virtual Queue Management System |
Bank Service Counter Q System Ticket Number Calling Machine Queue Management Waiting System
Introduction Of Queue Management System
In every organization when there is a high volume of customers, it is inevitable that customers have to queue to be served. Shangxu Q System not only assist our clients to manage their queue, we also assist our clients to improve their service quality by shortening the customer’s waiting time with our formulated Queue Reports to keep track of every stage of the queuing process.
Shangxu Q system also aims to keep those in the queue entertained by introducing our digital signage which combines TV/Video/e-posters to be displayed next to Q-information.
FEATURES Of Queue Management System
PURCHASE GUIDANCE :
Generally 1 Set Queue Management System Contain
Ticket Dispenser+(Calling Pad+LED Counter Display)* Number Of Counters + LED/LCD Main Display (Detailed quantity depend on your detailed requirement )
The Complete Queue System consist of the following:
1. Ticket Dispenser : IR Touch Screen LCD Monitor+ Industrial PC + 80mm Thermal Printer (All integrated into one unit)
2. counter calling pad terminal or counter computer which install the software call pad
3. Led/LCD Main Display(S) Screen In common waiting area.
4. Led/LCD Counter Displays Above Counter (Optional)
5. All units are interconnected by means of RS485 or wireless ways
Detailed Component List Of Queue Management System:
1.Touch Screen Ticket Dispenser 2.Counter LED/LCD Display Unit
3.Counter Call Pad Terminal 4.LED/LCD Waiting Area Main Display(Optional)
5.Customer Feedback Terminal(Optional)

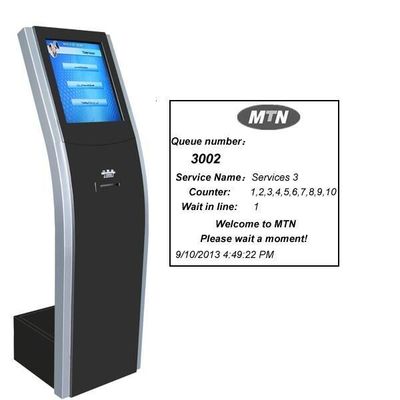

Technical Specification for Queue System Ticket Machine
•17 inch IR Touch Screen LCD display • Select Service Required. • Ticket is printed with selected service name, ticket number,number of waiting person, date & time,welcome message and advertising text • Includes Real Time Reporting Feature • Built in Industrial PC • Can Link to RS485 wired or wireless • Multiple Language •
Cabinet | All in one cold steel kiosk cabinet |
LCD Display | 17” LCD Display with resolution of 1280*1024 |
Touch Screen | 17” IR Touch Screen |
Thermal Printer | 80mm Epson Thermal Printer with auto cutter |
PC Configuration |
CPU: Intel 2.41Ghz 2G DDR3,500G HDD,6 USB port Windows 7 /Windows 10 Operation System |
Speaker | Inbuilt amplifier and 2 speakers for calling voice announcement |
Power Supply | 110V-240V |
Queue Management System |
1.Queue Management System software: control and manage the queues, can realize the function of Multiple language calling and Multiple language translation, and can realize the report statistic function
2.Interface and language and ticket format can be customized, and you can add logo or some other information on the ticket, like time, waiting people, the information can be editable |
QueueReporting | Real time report and statistics software |
Location | seat |
OS | Windows |
Real time tracking |
|
Statistics by client |
|
Window statistics (agent) |
|
Statistics by service |
|
Agency statistics |
Comparison of
|
Exportation | Excel |
Contact Person: Ms. Cherish
Tel: +8613826017042
