Bank/Hospital/Clinic Service Center Counter QMS Queue Ticketing System

Bank/Hospital/Clinic Service Center Counter QMS Queue Ticketing System

  • Bank/Hospital/Clinic Service Center Counter QMS Queue Ticketing System
  • Bank/Hospital/Clinic Service Center Counter QMS Queue Ticketing System
Bank/Hospital/Clinic Service Center Counter QMS Queue Ticketing System
Product Details:
Place of Origin: Guangzhou
Brand Name: ShangXu
Certification: CE certificate
Model Number: SX-QTK172 QMS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard Export Packing Cartons with Foam and other protection material
Delivery Time: 7 work days
Payment Terms: T/T, Western Union
Supply Ability: 500 set per month
Contact Now
Detailed Product Description
Name: Queue Management System Language: English/Arabic/French/Russian.etc Multiple Language Supported
Function: Queue Management,Smart Queuing Tickets Printer Material: Cold Rolled Steel
Warranty: 1 Free Year Printer: Epson 80mm Thermal Printer
Usage: QUEUE MANAGEMENT Touch Screen: IR Touch Panel
Os: Windows XP / Windows 7 Power Supply: 110-240V 50HZ/60HZ
Type: Wired / Wireless

Bank/Hospital/Clinic Service Center Counter QMS Queue Ticketing System

Hospital/Clinic/pharmacy/Doctor Room Wireless Or Wired LED/LCD Token Number queuing management calling display system

Bank/Hospital/Clinic Service Center Counter QMS Queue Ticketing System

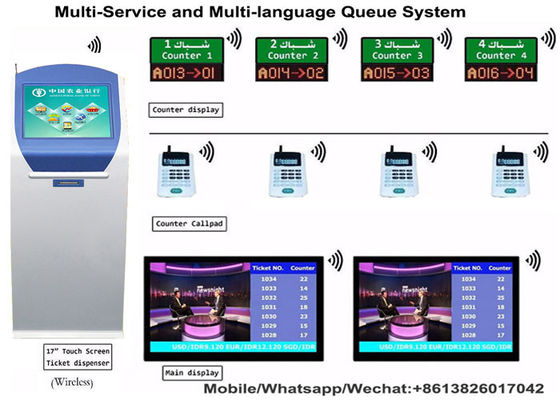

The System consist of the following:

1. Ticket Dispenser : IR Touch Screen LCD Monitor+ PC + Thermal Printer (All integrated into one unit)

2. counter calling pad terminal or counter computer which install the software call pad

3. Led/LCD Main Display(S) Screen In common waiting area.

4. Led/LCD Counter Displays Above Counter (Optional)

5. All units are interconnected by means of RS485 or wireless ways

Bank/Hospital/Clinic Service Center Counter QMS Queue Ticketing System



Component Of Queue Management System



Bank/Hospital/Clinic Service Center Counter QMS Queue Ticketing System



•17 inch Touch Screen LCD display • Select Service Required. • Ticket is printed with selected service name, ticket number,number of waiting person, date & time,welcome message and advertising text • Includes Real Time Reporting Features. • Built in Industrial PC • Can Link to RS485 wired or wireless



Cabinet All in one cold steel cabinet
LCD Display 17” LCD Display with resolution of 1280*1024
Touch Screen 17” IR Touch Screen
Thermal Printer 80mm Epson Thermal Printer with auto cutter
PC Configuration

CPU: Intel 2.41Ghz

2G DDR3

500G HDD

6 USB port

Windows 7 Operation System installed

Speaker Inbuilt amplifier and 2 speakers for calling voice in Arabic/French etc multiple language
Power Supply 110V-240V





Queue Management System

1.Queue Management System software: control and manage the queues, can realize the function of Multiple language calling and Multiple language translation, and can realize the report statistic function



2.Interface and language and ticket format can be customized, and you can add logo or some other information on the ticket, like time, waiting people, the information can be editable



Bank/Hospital/Clinic Service Center Counter QMS Queue Ticketing System





Bank/Hospital/Clinic Service Center Counter QMS Queue Ticketing System 4



Press Button 21 multiple function button
LCD Display 8 digits lcd display,5 digits showing the queue number of the called customer,3 digits display for number of customer waiting .
Power Supply 5V
Communication Wired or Wireless
Multiple function Button “Call”, “Recall”, “Transfer””Store queue and callback” ”Service Time Reminder” “Clear” and etc.

Bank/Hospital/Clinic Service Center Counter QMS Queue Ticketing System 5
Specifications for LED Counter Display:



8 Digits RED Color LED Counter Display.Double color also available.



4 digits display ticket number & 2 digits display for counter number,with Arrow for direction to the counter number



The display format can be customized



110V-240 V Power Supply



Wired or Wireless available







Bank/Hospital/Clinic Service Center Counter QMS Queue Ticketing System 6
Specifications for LED Main Display:



4 Lines * 8 Digits RED Color LED Counter Display.Double color also available.



4 digits display ticket number & 2 digits display for counter number,with Arrow for direction to the counter number



The display format can be customized







lcd main display 00

Specifications for Player Box :



Windows based or Android based





*Inbuilt Multimedia and Queue Number Software,can split the screen to many zones,one side can play the advertising video,another side can play the queue information,at the bottom side can display the running text. by using the player box, make the queue number showing on the LCD screen





Bank/Hospital/Clinic Service Center Counter QMS Queue Ticketing System

Bank/Hospital/Clinic Service Center Counter QMS Queue Ticketing SystemBank/Hospital/Clinic Service Center Counter QMS Queue Ticketing System

Bank/Hospital/Clinic Service Center Counter QMS Queue Ticketing System

Bank/Hospital/Clinic Service Center Counter QMS Queue Ticketing System

Bank/Hospital/Clinic Service Center Counter QMS Queue Ticketing System

If any interest in our Queue Management System product,kindly contact us as below information



Bank/Hospital/Clinic Service Center Counter QMS Queue Ticketing System
